SERCEL VIBRATION METER VE432 DPG AND DSD WITH ACCESSORIES
1x Digital Pilot Generator
1x Digital Servo Drive
Battery Cable
Battery Box
Lift Box
Break-Out box
The VE 432 is a new generation of Vibrator Digital Control System, using a fully auto-adaptive servomechanism. It enables the use of all advanced Vibroseis techniques such as:
- pseudo-random sweeps
- multiple simultaneous sources in flip-flop or slip-modes
- coded sweeps - cascaded
he VE 432 is fully compatible with most satellite DGPS and Glonass receivers, for integrated tracking of source positions.

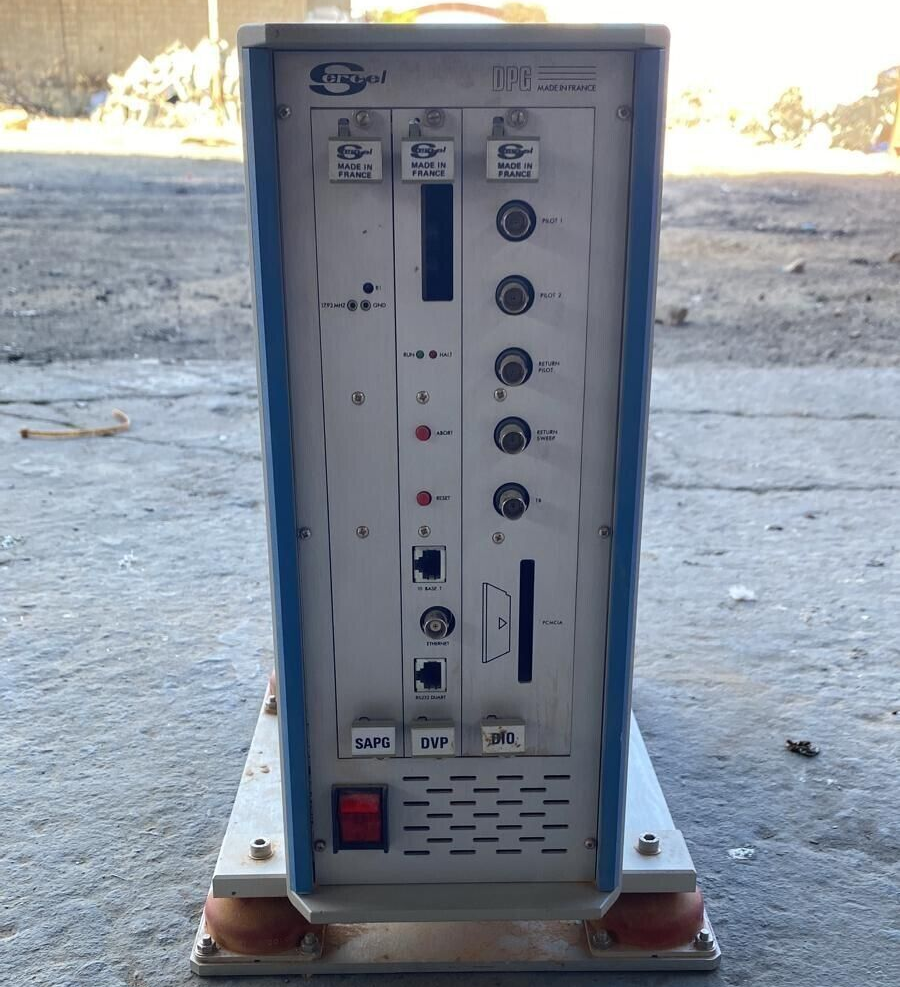

Digital Pilot Generator (DPG)
The DPG is connected to the data acquisition system through an Ethernet link and acts as a master control unit for the VE 432 system.
The DPG can be:
- fully integrated with the SN 388 acquisition system,
- or connected to any other type of acquisition system, using its own graphic user interface.
- or used as Slave unit to control acquisition start on a remote (slave) acquisition system.

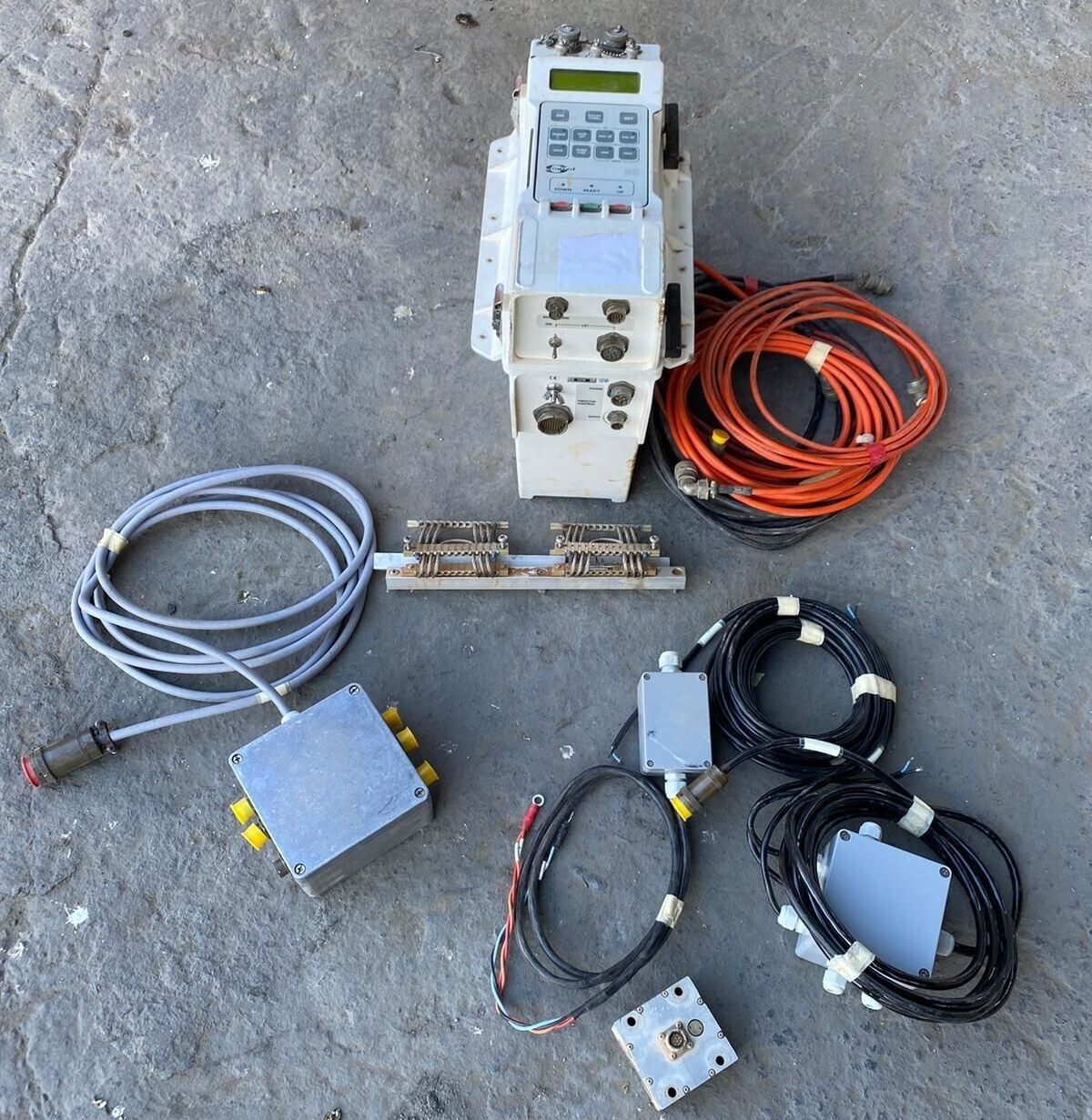

Digital Servo Drive (DSD)
Installed in each vibrator, the DSD performs real time control of the vibrator ground force, computes and transmits a complete attribute set for a QC data base. Maintenance modes are available that make it possible to easily check the performance of the vibrator hardware and the GPS system.
