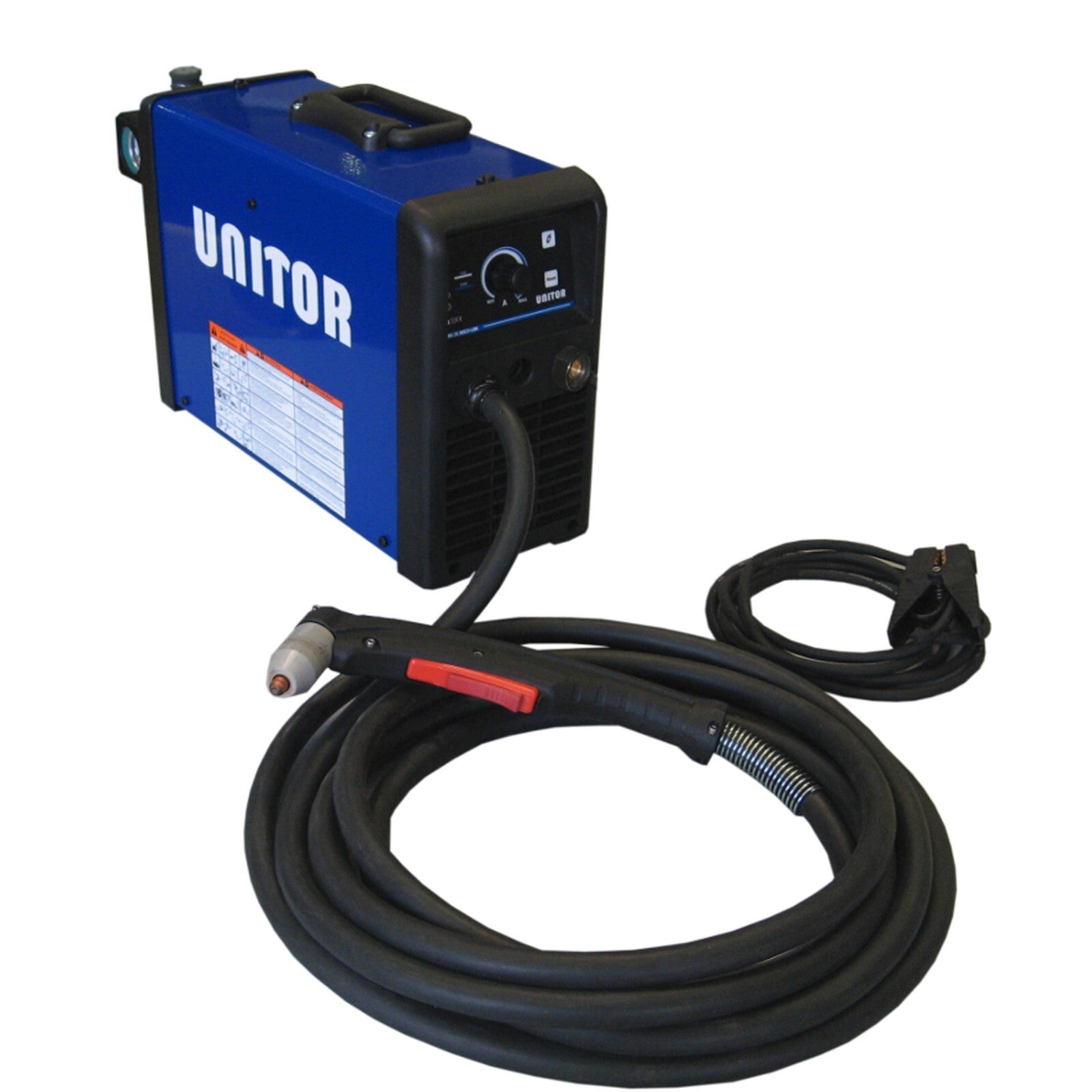

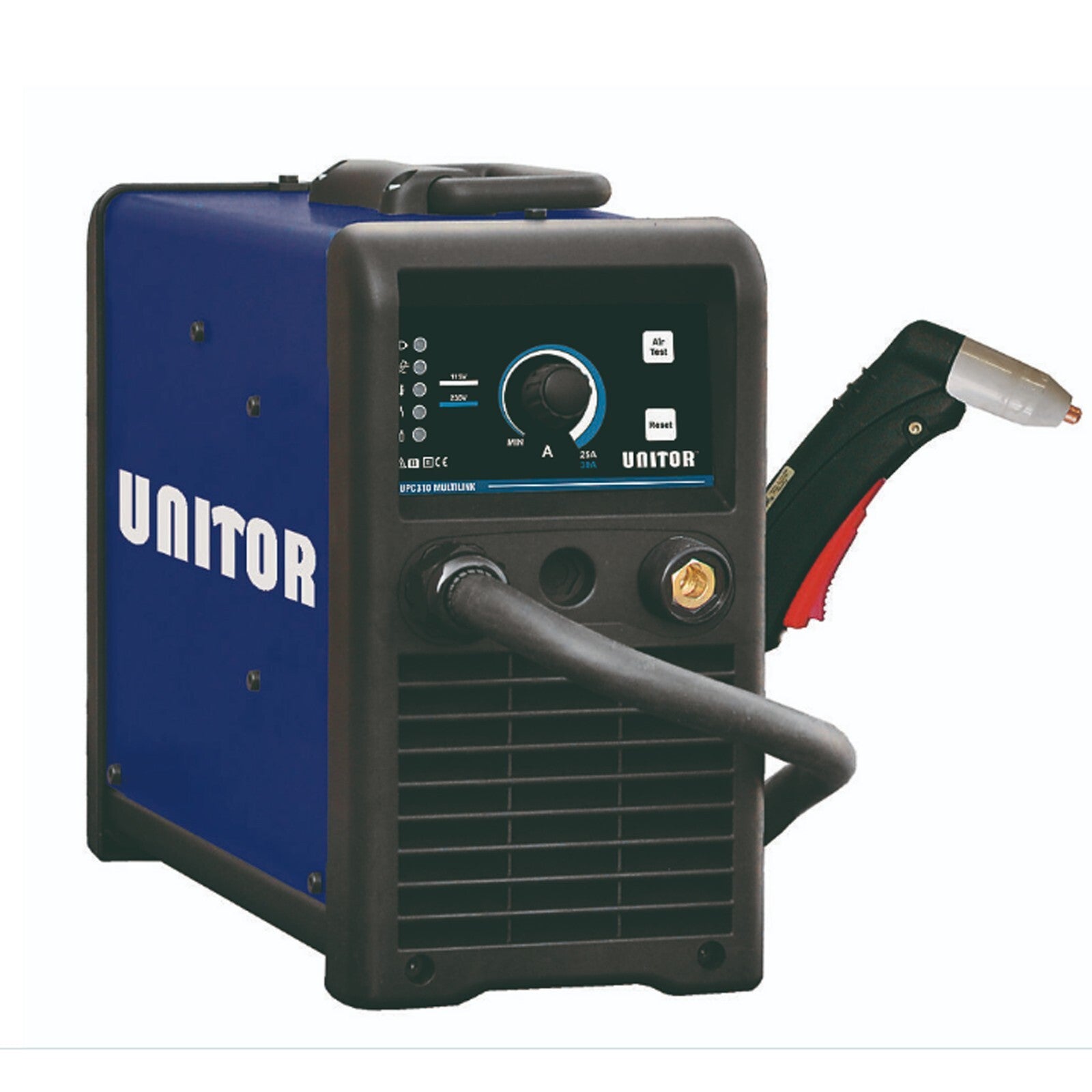

The UPC-310ML is ideal for cutting all electrically conductive steels up to a maximum thickness of 12mm. It is able to function on any supply voltage between 110 V to 230 V.
Features
Lightweight, portable and easy to operate
Performs recommended cut of 8mm at cutting speed of 400mm/min and quality cut of 10mm at cutting speed of 200mm/min
Equipped with Intelligent Voltage Reading (IVR) function to indicate the end of life for plasma consumables

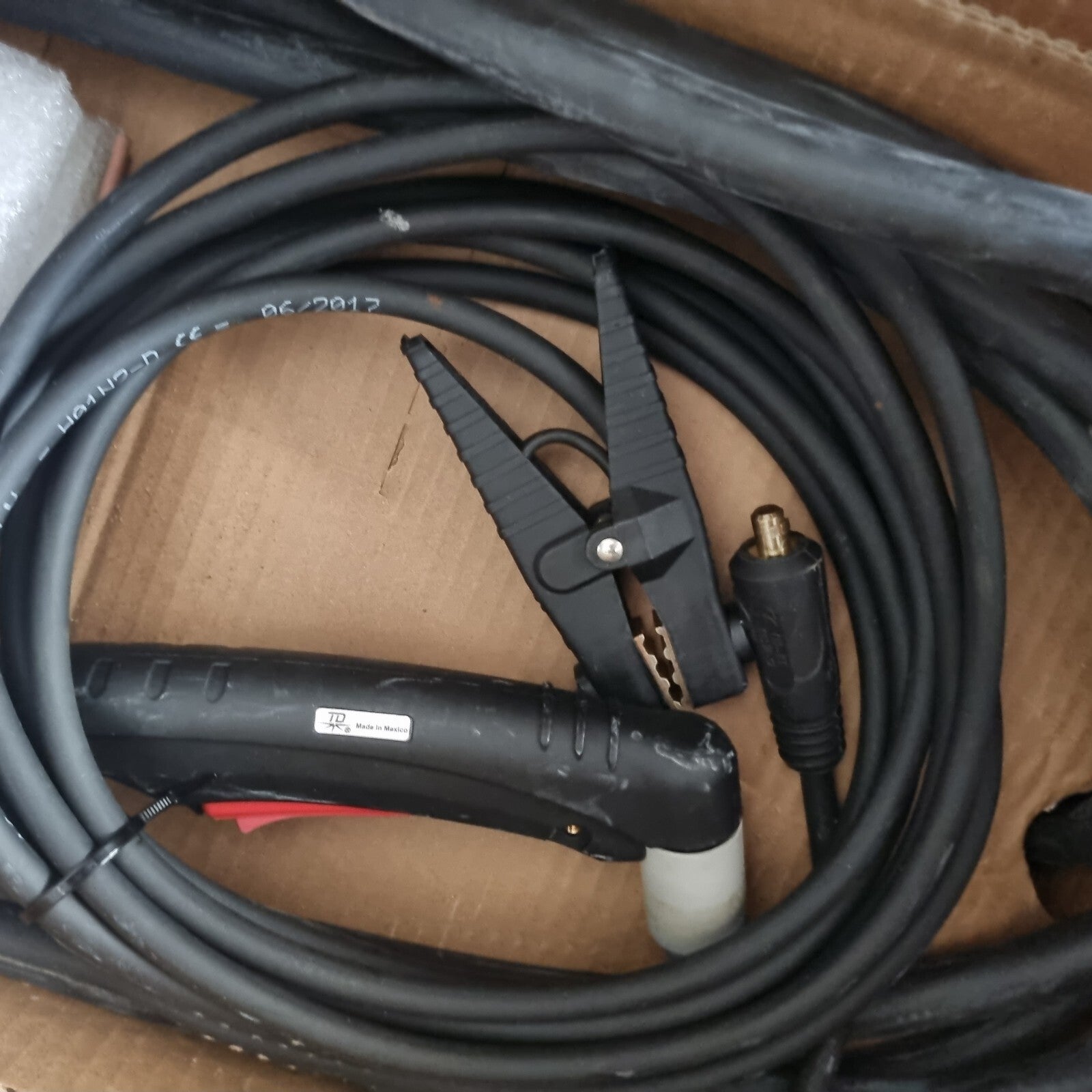

Torch with safety trigger as per CE standard and "Reset" button" to avoid accidental trigger
IP23 ingress protection with high resistance to dust and moisture
Benefits
Safe and compliant for maritime and outdoor use. The plasma cutter may easily be passed through manholes and brought to any
workplace on board vessel for maintenance and repair works
Excellent cutting performance and versatile as it can cut a wide range of electrically conductive steels such as mild and stainless
steels, castings, aluminum, titanium as well as copper alloys
Quality cut with lesser distortion and smaller Heat-Affected Zone (HAZ) compared to traditional oxy-fuel cutting process
Uses Pilot Arc and not High Frequency (HF) blowback ignition system which does not interfere with shipboard radio
communication or other electronically controlled equipment

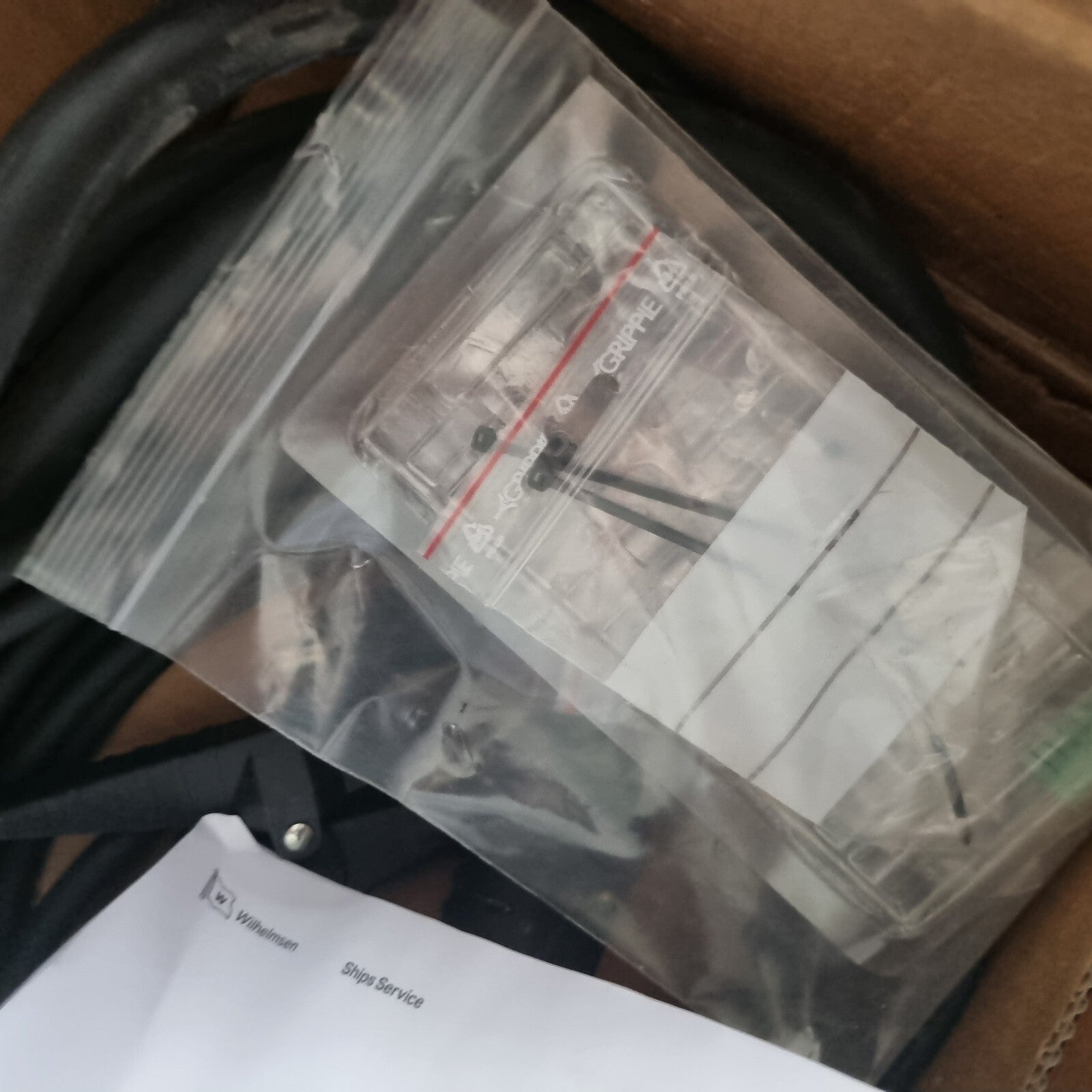

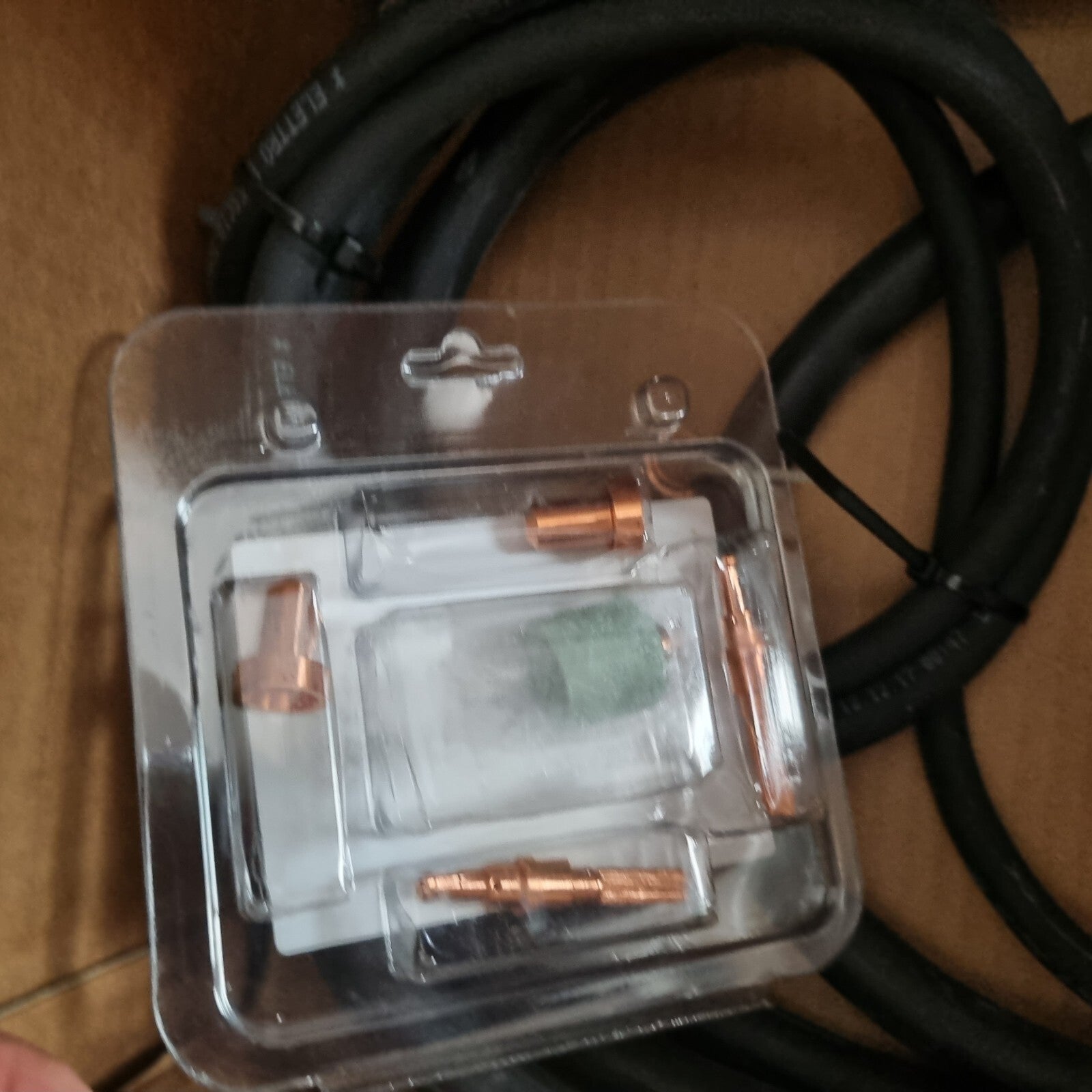

Spare part kit available for easy repair and to minimize downtime
